In this blog, I’ll walk you through my repair process for the Amiga 1081 monitor, a classic CRT display from the retro computing era. These monitors were commonly paired with Commodore 64 and Amiga systems, and they’re known for their bright displays and durability. However, like all electronics, they eventually need maintenance or repair.
I was fortunate enough to be gifted a Amiga 1084 monitor (more details about the different Commodore monitor models can be found here), but it wasn’t working—there was no response when I switched it on. Here’s how I diagnosed and eventually repaired it.
Diagnosing the Power Switch
The first and most common issue with these vintage monitors is the power switch. I suspected this could be the root cause, and sure enough, it was faulty. However, after replacing it with a functioning switch, the monitor still wouldn’t power on.
Troubleshooting the Power Supply

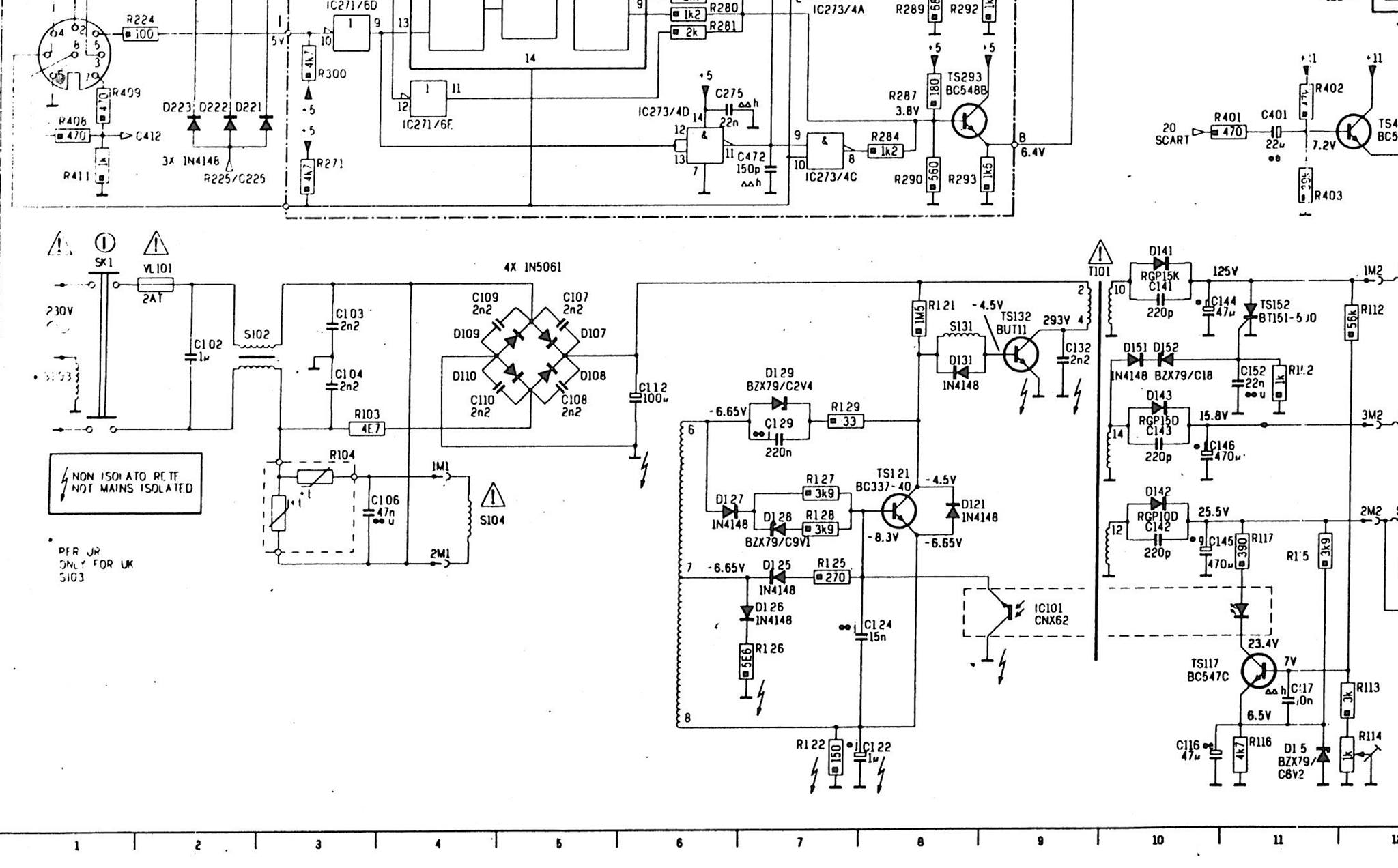

Next, I turned my attention to the power supply unit (PSU). Without a load, the PSU was generating incorrect voltages: 9V, 15V, and 70V instead of the expected 15.8V, 25.5V, and 125V. Worse yet, when I attached a load, the voltages dropped to virtually zero.
I decided to recap the power supply (replacing all electrolytic capacitors) and checked most of the semiconductors. Unfortunately, this didn’t immediately solve the problem. After receiving some helpful tips from Facebook groups, I found that a 6.2V Zener diode (D115, BZX79-C6V2) was faulty. This was something I hadn’t tested initially. With the Zener diode replaced, the PSU began outputting correct voltages without load, but it still failed under load.
Replacing the Flyback Transformer
Suspecting the flyback transformer (responsible for generating the high voltages required by the CRT), I replaced it with a new one from Electronic Spare Parts. Given that flyback transformers often fail along with the horizontal output transistor (HOT), I replaced the HOT as well. Yet, when I powered on the monitor, the screen remained dark.
Returning to the Repair After Years
After a couple of years of leaving the project on hold, I revisited the repair. This time, I suspected cold solder joints (poor solder connections that can cause intermittent failures). I reflowed several suspicious joints and powered the monitor again. Although the screen was still dark, I noticed that the power supply began emitting a high-pitched noise—a sign that it had gone into protection mode. This indicated some progress.

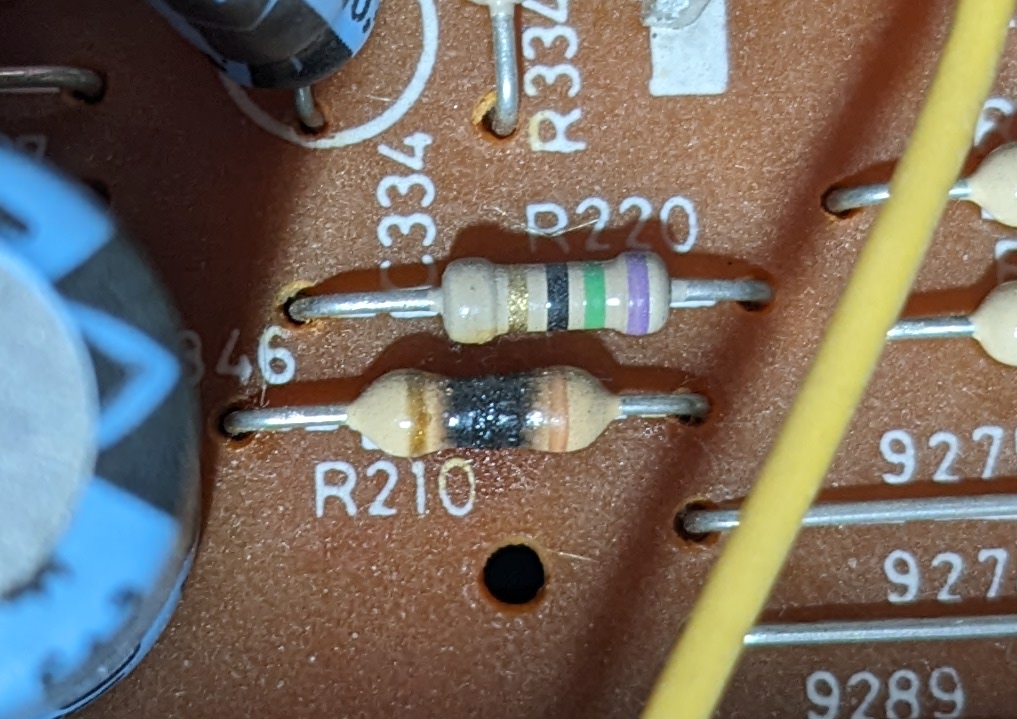

Upon further inspection, I found a seemingly fried resistor (R210, 22Ω). Despite appearing burnt, it tested fine, but I replaced it anyway just to be safe.
According to the schematic, this resistor wasn’t critical to the power section—it was part of the video input circuitry.
Horizontal Output Transistor: A Key Insight
In a fantastic video by RetroBits (at 11:03), it was noted that the horizontal output transistor (HOT) requires an electrically-insulated, thermally-conductive layer to prevent shorting against the heatsink. The HOT I had installed had a metal back, which could have been causing shorting. Upon inspection, I found that the original HOT, which I had removed, had a plastic back and was still within spec. So, I reinstalled the old HOT.
Before reassembling, I inspected the board once more and reflowed a few additional solder joints that seemed broken.
Success: The Monitor Comes Back to Life

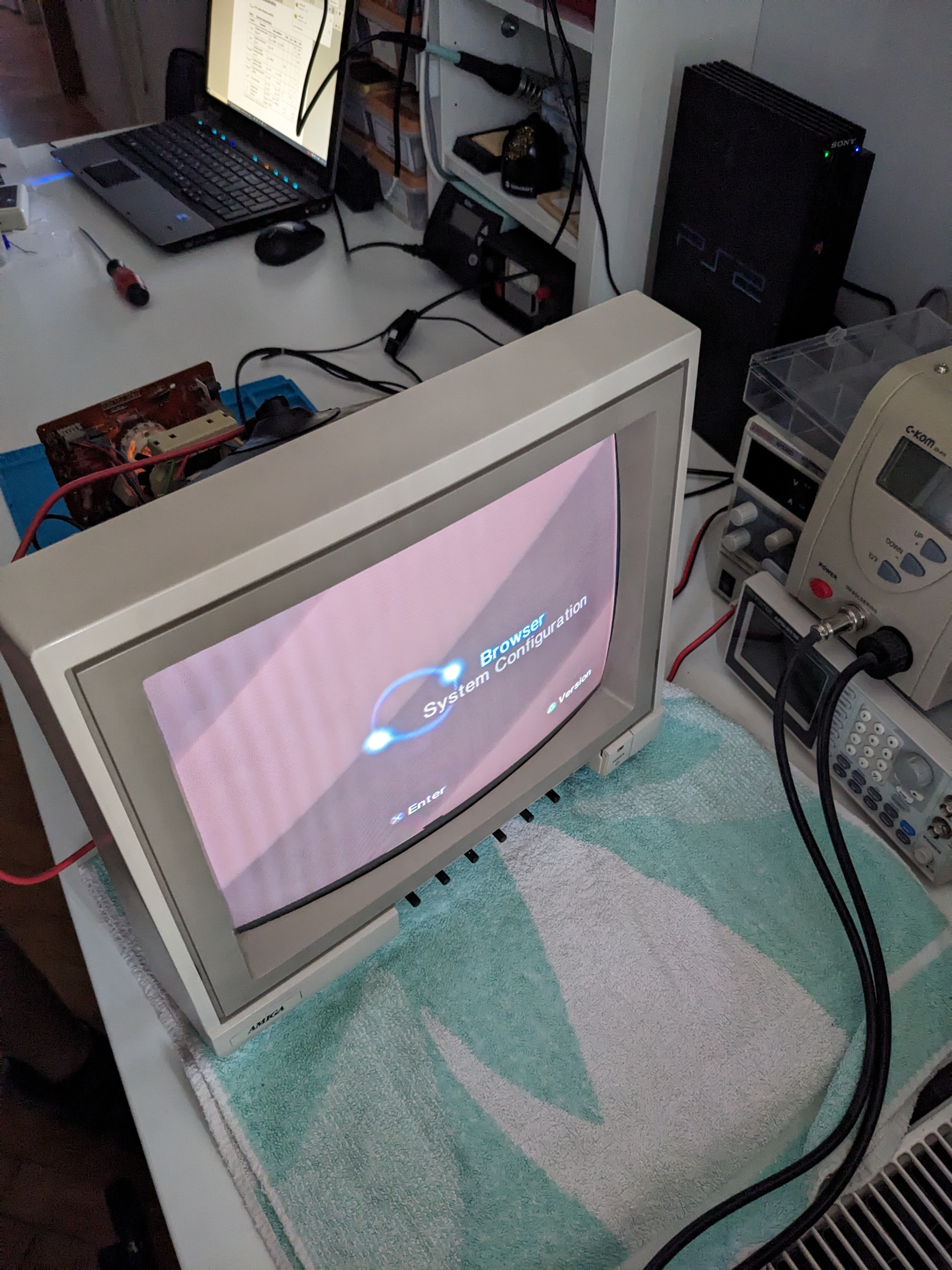

To my surprise, after reassembly, the monitor powered on and displayed a picture! Although I’m not exactly sure what fixed it—perhaps the old HOT, the cold solder joints, or something else—it finally worked.
Further Issues and Fixes
Color Loss: Solving the Grayscale Problem
Soon after reassembling, I noticed the monitor had lost its color—it was displaying in grayscale. Using an old digital camera with composite output, I generated a test pattern and confirmed that the issue persisted.

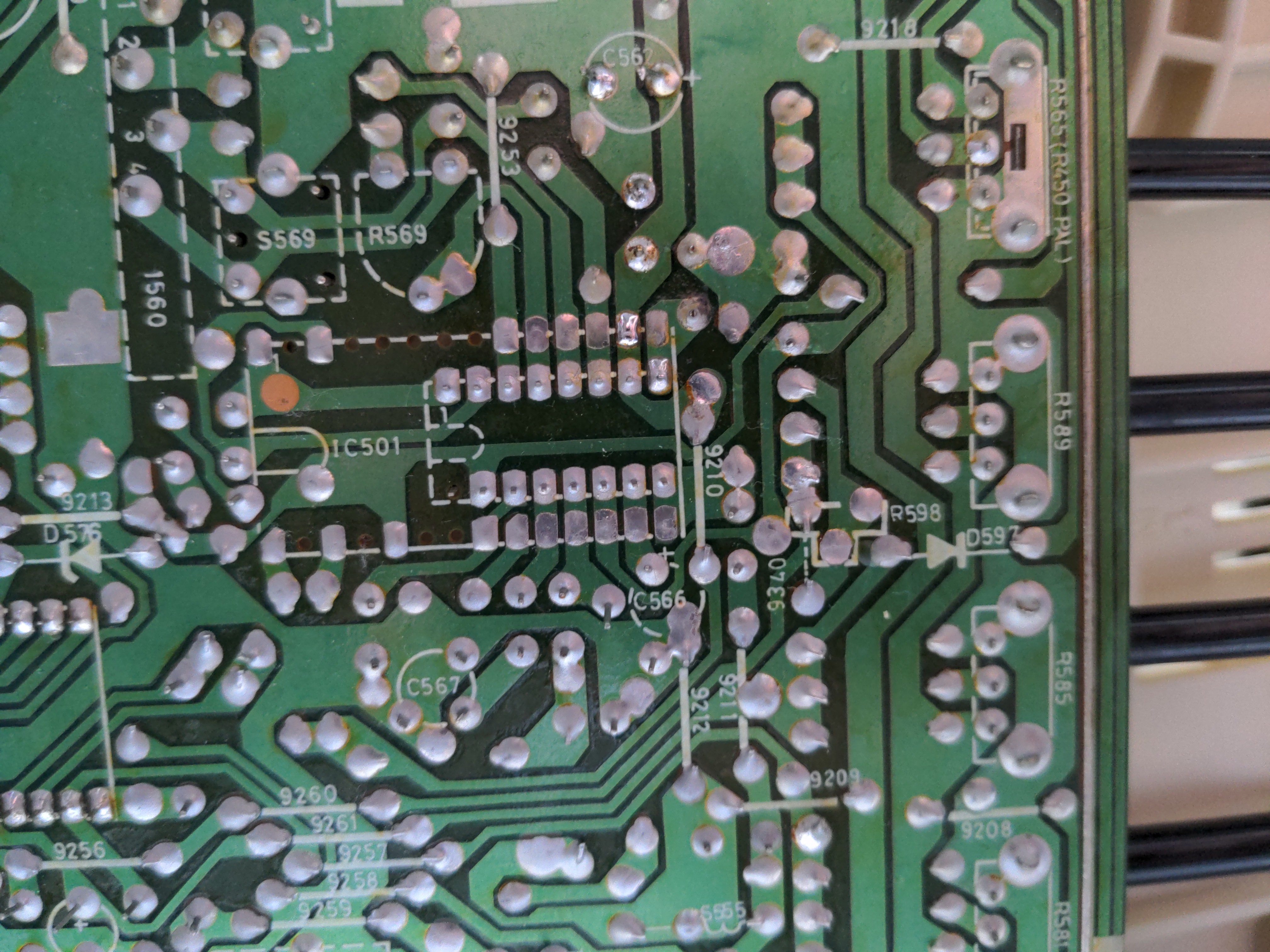

After some research, I learned that the issue might stem from the TDA4510 color decoder IC (responsible for decoding the PAL color signal). I reflowed several solder joints around the IC, and thankfully, the colors returned.
Screen Blinking and Vertical Ringing
Despite the color fix, I noticed the screen would intermittently blink, with the image shaking slightly and occasionally narrowing. After additional investigation, I suspected capacitor issues in the power supply lines feeding the CRT’s RGB output transistors. I replaced the largest capacitor, C473 (4.7uF), but the problem persisted. I invested some more time into identifying cold joints and I reflowed few of them. The screen stopped blinking, finally.

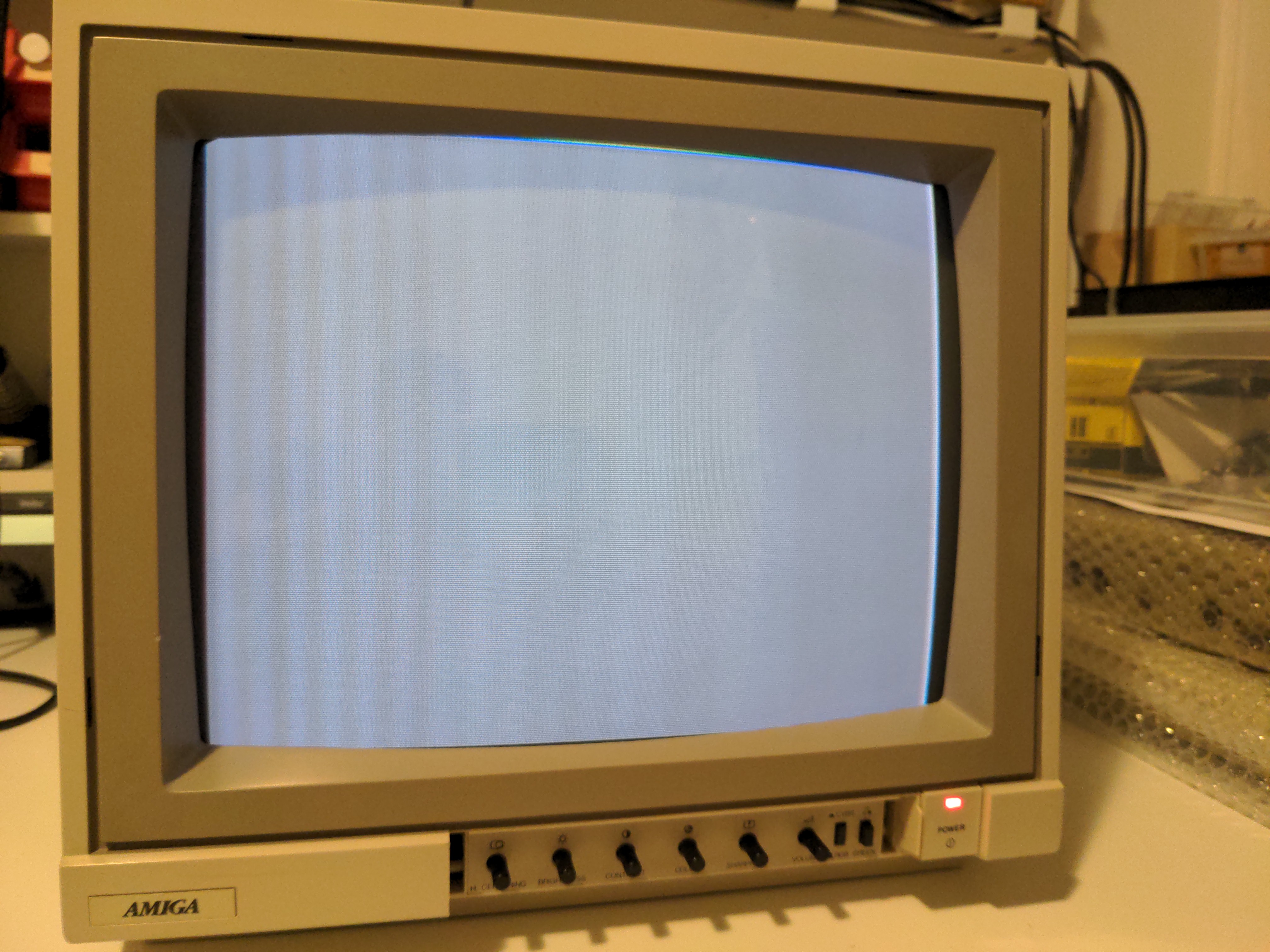

I also observed vertical ringing—faint shadows or ghosting along the left side of the screen.
Based on advice from an online forum, I replaced several capacitors near the flyback transformer, including C494 (200V, 47uF), C491, and C493. While these capacitors were within specs, I replaced them anyway but this didn’t eliminate the ringing. One of the members of an online group asked me if I had a new flyback installed (I did indeed). He suggested to put back the old one in case it still worked. Apparently the new ones are of low quality. I followed his advice, the old flyback actually still worked (what a waste of money on buying a new one - but at least I have a spare part) and the ringing was much less visible.
Final Adjustments
Following the instructions in the Commodore 1081 service manual, I made final adjustments to the power supply (R114) to ensure the voltage output under load was a stable 125V, with the other lines at 15.6V and 25.5V. I also used the potentiometer on the neck board (R732) to fine-tune the focus.
What’s Next?
There are still a few adjustments I’d like to make to improve the picture quality. According to the service manual, I need proper test patterns to adjust the image geometry and colors accurately. I’m exploring ways to inject test patterns through the video input, possibly using an old laptop with S-video output or tools like the 240p Test Suite. The image does look a bit reddish.
